Recommended products
- Top Seller
LD2 Rigging-System
3.689,00 €
Incl. tax, excl. shipping costs

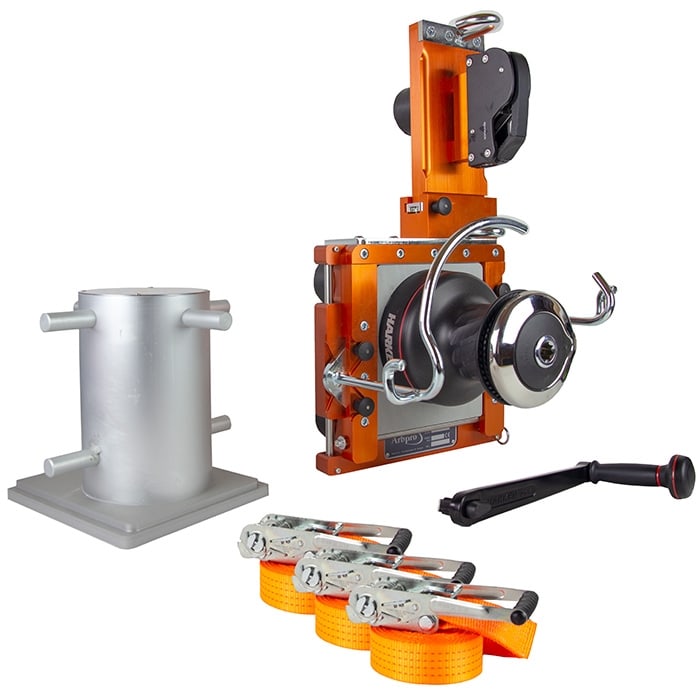

Lowering device set | with Harken Winch (46:1), bollard, steel plate, rope clamp, 3 fastening straps | 50 kg | CE
SKU
GT48-2
In stock
ONLY 2 LEFT!
It can happen that another interested party has gone through the ordering process faster and the display of the remaining stock still changes on your way through the checkout.
Product Details
Description

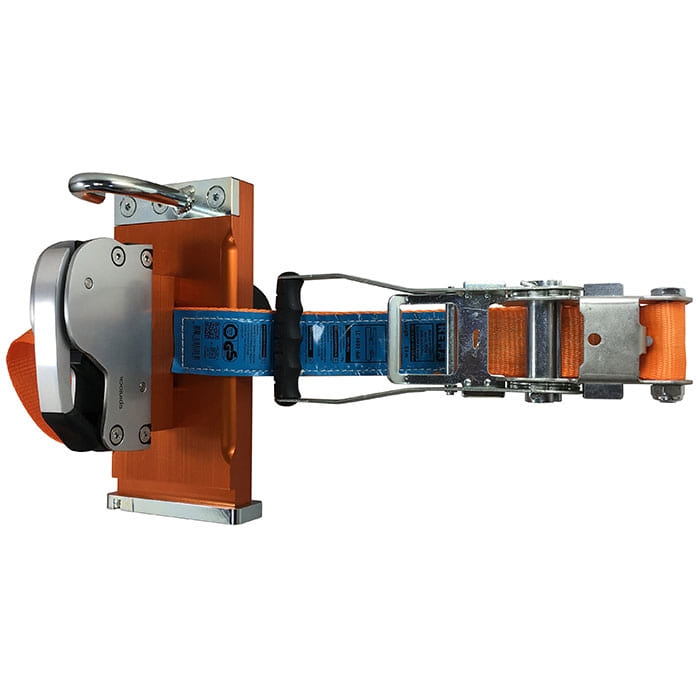

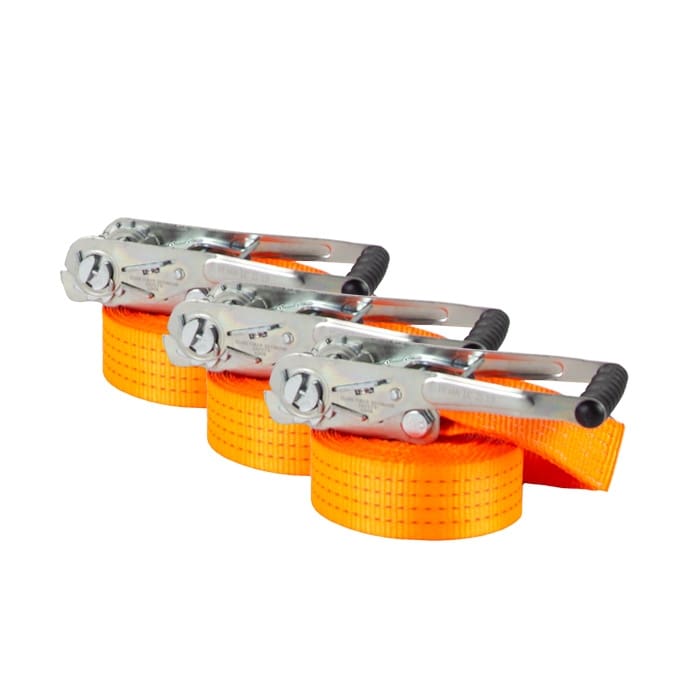

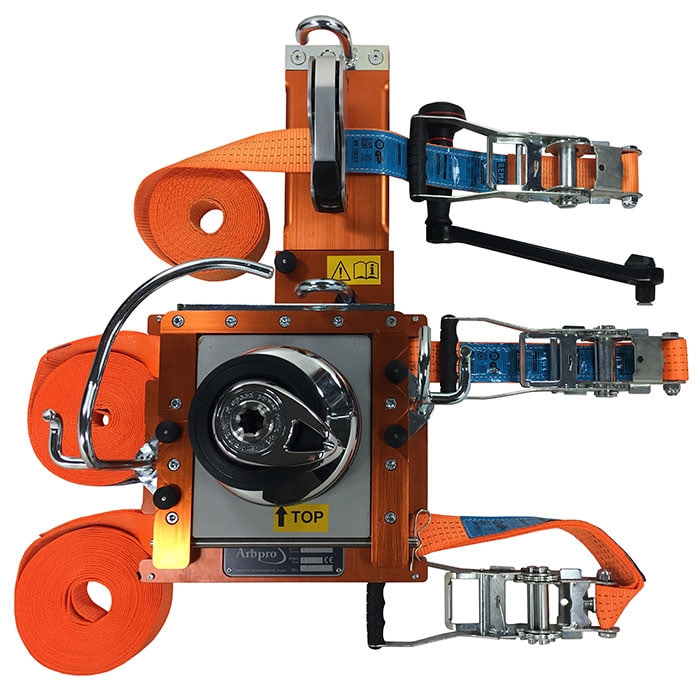

Featuring a high performance Harken winch and a sturdy rigging bollard the LD2 Rigging-System offers a lot of extra muscle for rigging operations. Winch and bollard can be used and installed interchangeably. The one-way rope clutch holds the load locked off and helps swapping the winch out for the friction bollard. It can be mounted to the main frame made of anodized aluminium. All parts are bolted with highly robust stainless steel bolts. Because of the materials involved the LD2 Rigging-System is not only weather-resistant, but also weighs just as much as the LD1 System in spite of its larger sized winch and bollard. Shipment includes three fastening straps. The LD2 follows the provisions of the machinery directive 2006/42/EC.
Technical data
• Aluminium main frame: 16.5 kg
• Parts bolted with stainless steel bolts

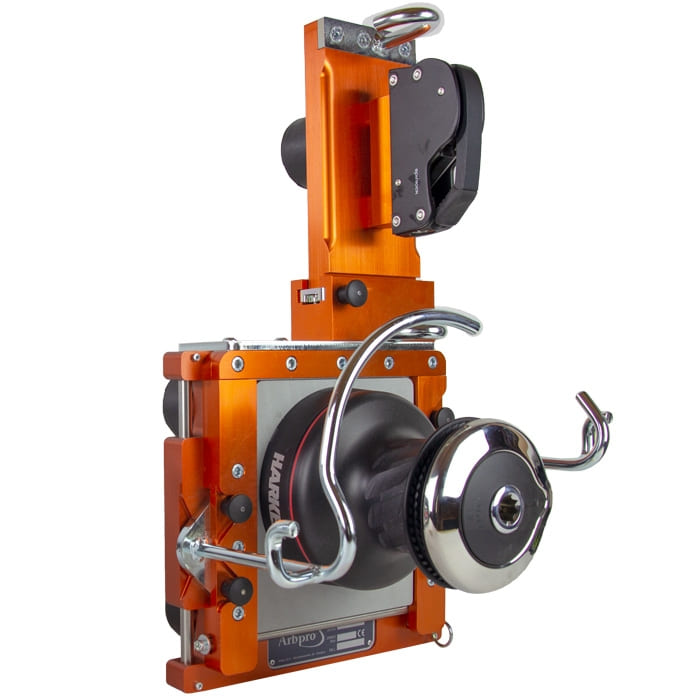

• 46:1 Harken Radial Winch: 9.5 kg

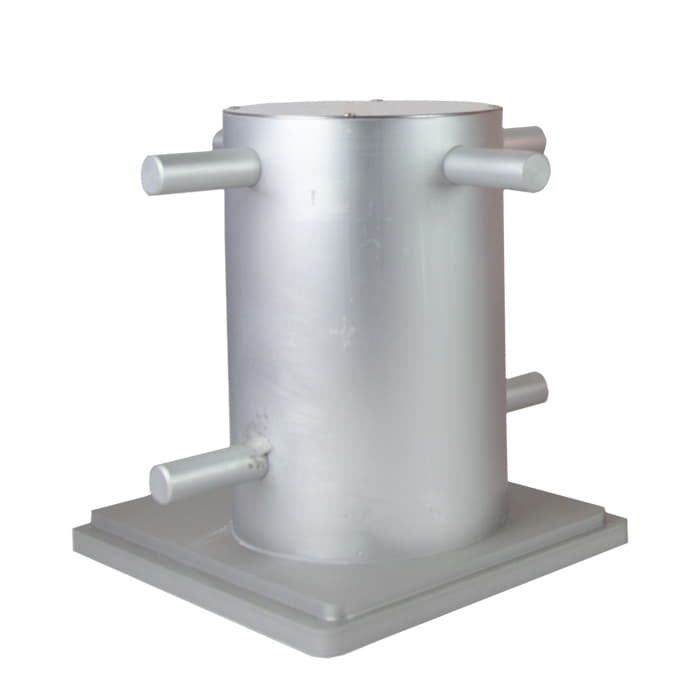

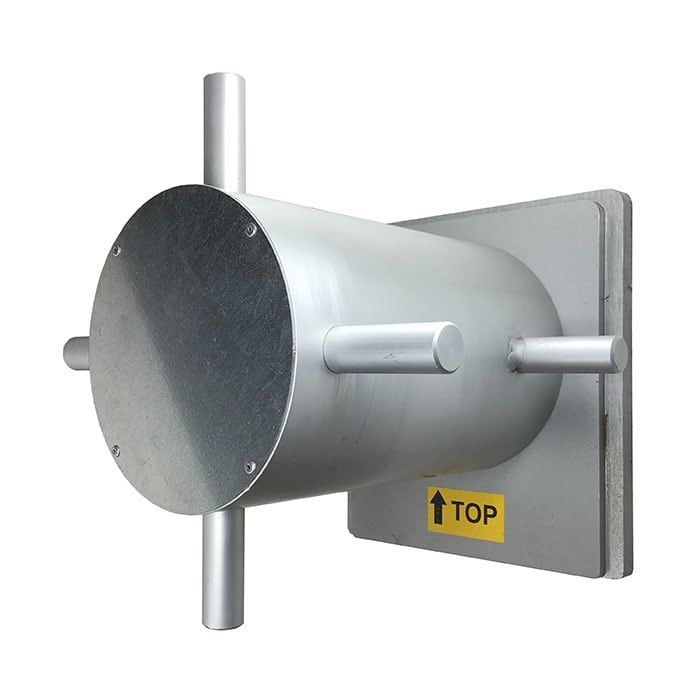

• Rigging bollard Ø 150 mm: 5 kg
• Breaking strength with rope clamp: 7,500 kg
• Safe working load with winch: 1,200 kg
• Safe working load with bollard: 1,500 kg
• For rigging ropes Ø 12–16 mm (winch and rope clamp)
• For rigging ropes Ø 12–19 mm (bollard)
Technical data
• Aluminium main frame: 16.5 kg
• Parts bolted with stainless steel bolts
• 46:1 Harken Radial Winch: 9.5 kg
• Rigging bollard Ø 150 mm: 5 kg
• Breaking strength with rope clamp: 7,500 kg
• Safe working load with winch: 1,200 kg
• Safe working load with bollard: 1,500 kg
• For rigging ropes Ø 12–16 mm (winch and rope clamp)
• For rigging ropes Ø 12–19 mm (bollard)
More Information
| Item number | GT48-2 |
|---|
