LD1 Rigging-System
2.499,00 €
Incl. tax, excl. shipping costs

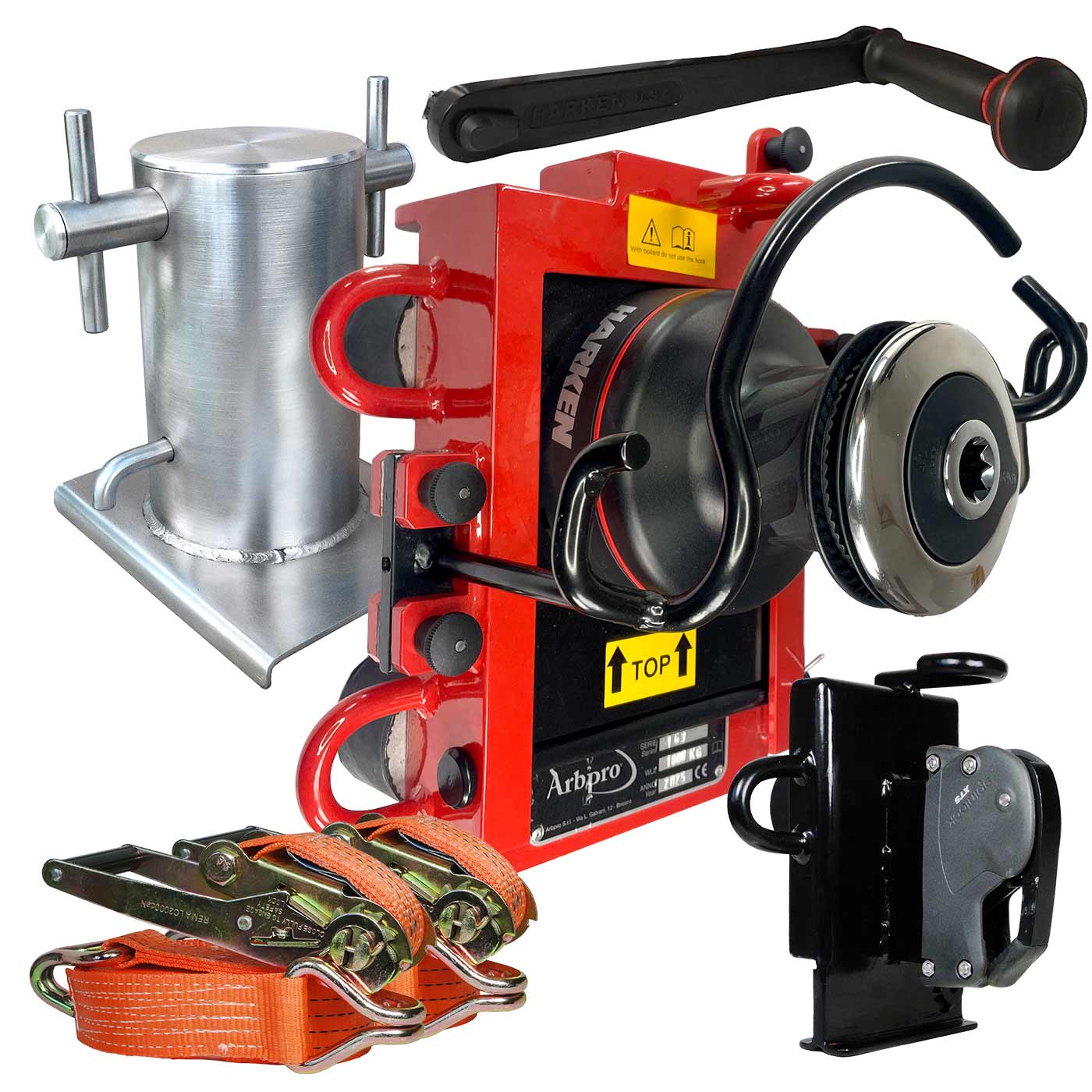

Lowering device set | with Harken Winch (40:1), bollard, steel plate, rope clamp, 3 fastening straps | 53 kg | CE
SKU
GT48
In stock
ONLY 4 LEFT!
It can happen that another interested party has gone through the ordering process faster and the display of the remaining stock still changes on your way through the checkout.
Product Details
Description

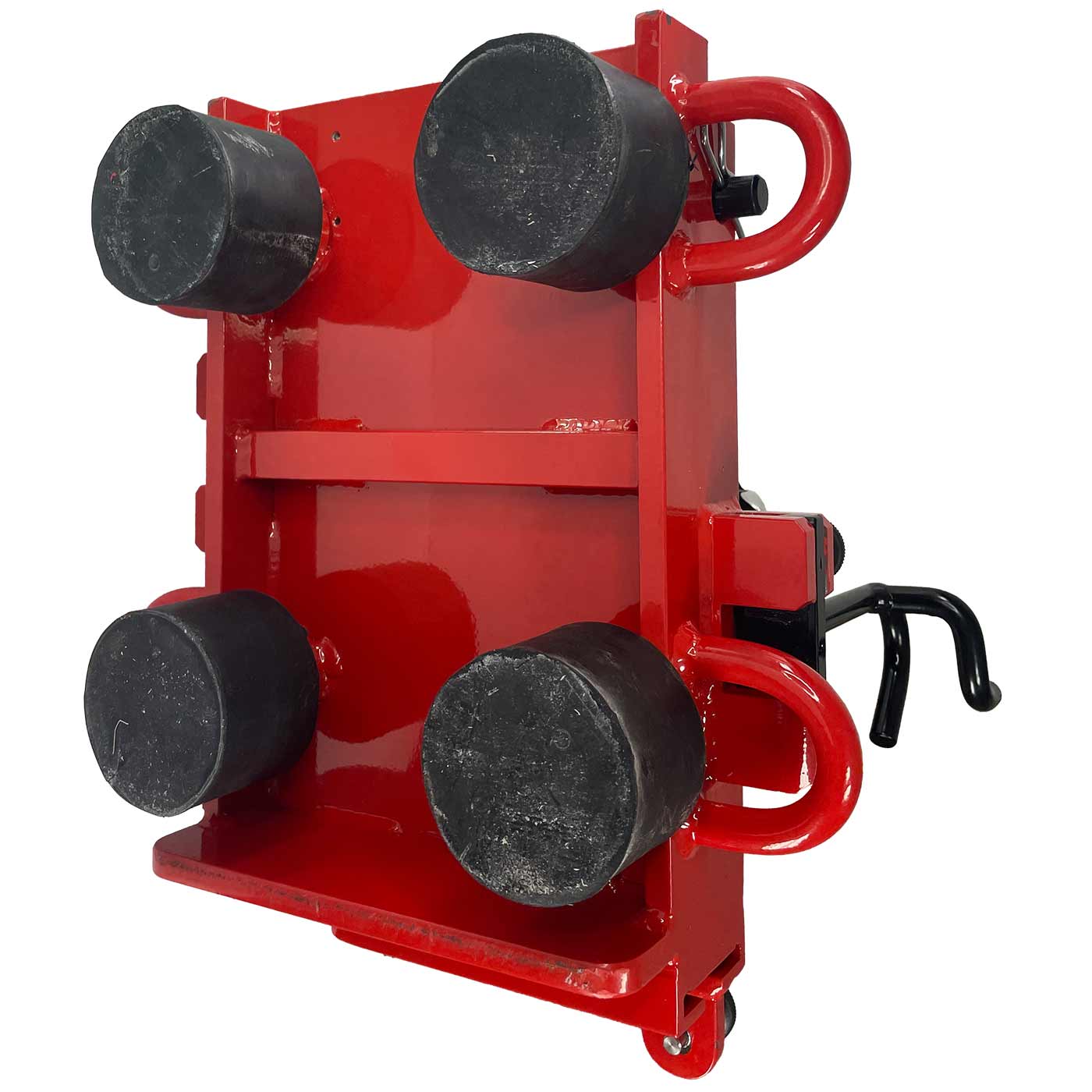

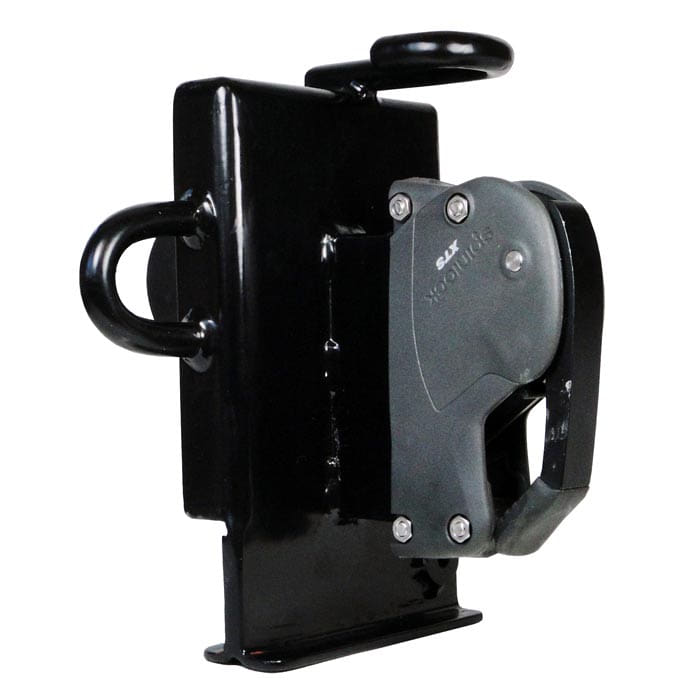

Featuring a high performance Harken winch and a sturdy rigging bollard, the LD1 Rigging-System provides efficient support in rigging operations. Winch and bollard can be installed and used interchangeably. The one-way rope clutch holds the load locked off and helps swapping the winch out for the friction bollard. It can be mounted to the main frame. Shipment includes three fastening straps. The LD1 follows the provisions of the machinery directive 2006/42/EC.
Technical data
• Steel main frame: 15 kg
• Welded parts

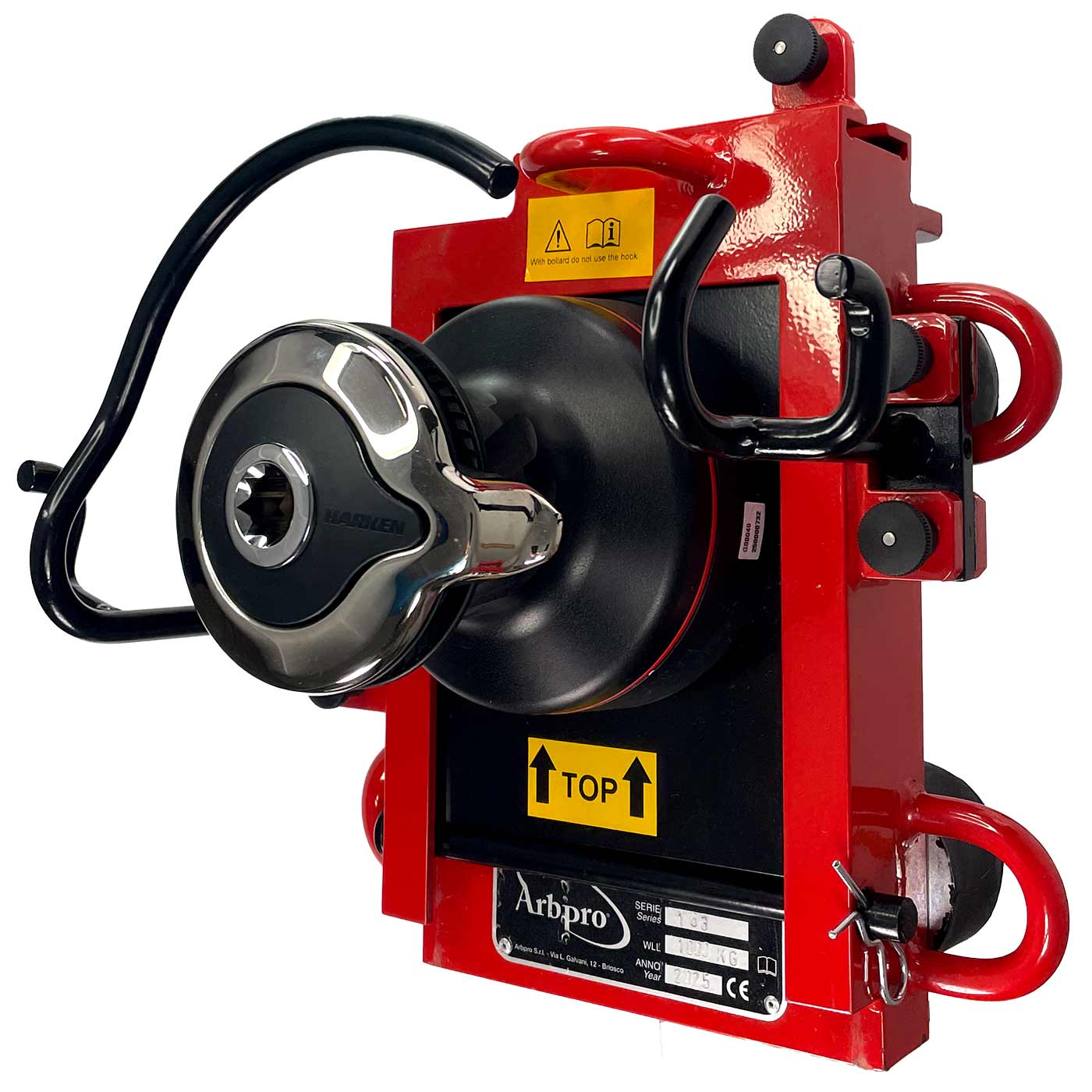

• 40:1 Harken-Winch: 6,3 kg

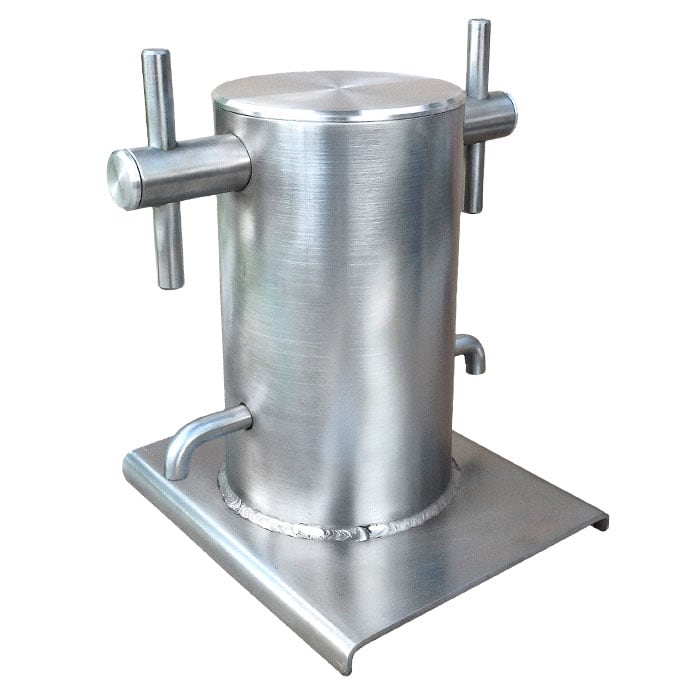

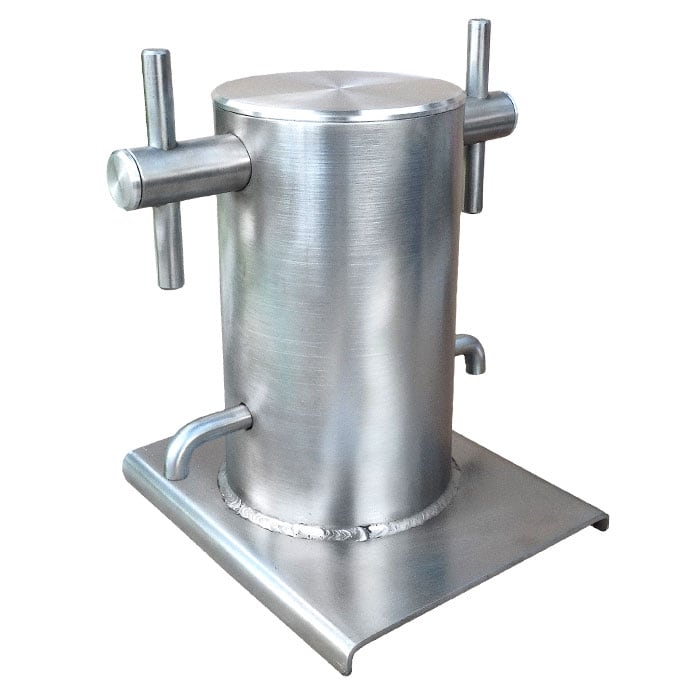

• Rigging bollard Ø 140 mm: 11 kg
• Breaking strength with rope clamp: 4,900 kg
• Safe working load with winch: 800 kg
• Safe working load with bollard: 1,000 kg
• For ropes Ø 12–14 mm (winch and rope clamp)
• For ropes Ø 12–16 mm (bollard)
Technical data
• Steel main frame: 15 kg
• Welded parts
• 40:1 Harken-Winch: 6,3 kg
• Rigging bollard Ø 140 mm: 11 kg
• Breaking strength with rope clamp: 4,900 kg
• Safe working load with winch: 800 kg
• Safe working load with bollard: 1,000 kg
• For ropes Ø 12–14 mm (winch and rope clamp)
• For ropes Ø 12–16 mm (bollard)
More Information
| Item number | GT48 |
|---|
