Cupid Swivel Mix
69,97 €
Incl. tax, excl. shipping costs
Whirl | Aluminium | 20 kN | CE | PPE-R/11.135
SKU
PCSM
In stock
Accessories / spare parts
Product Details
Description

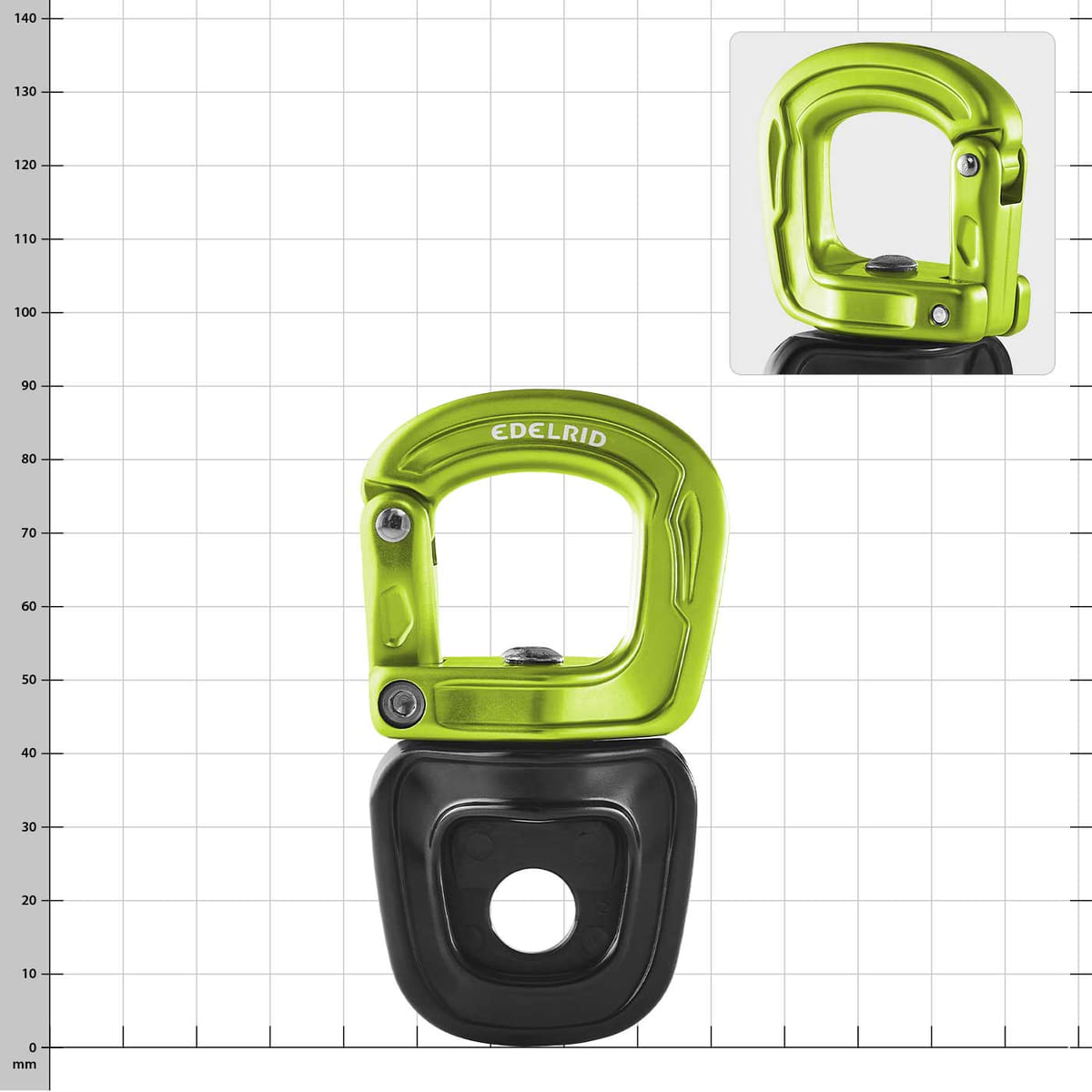

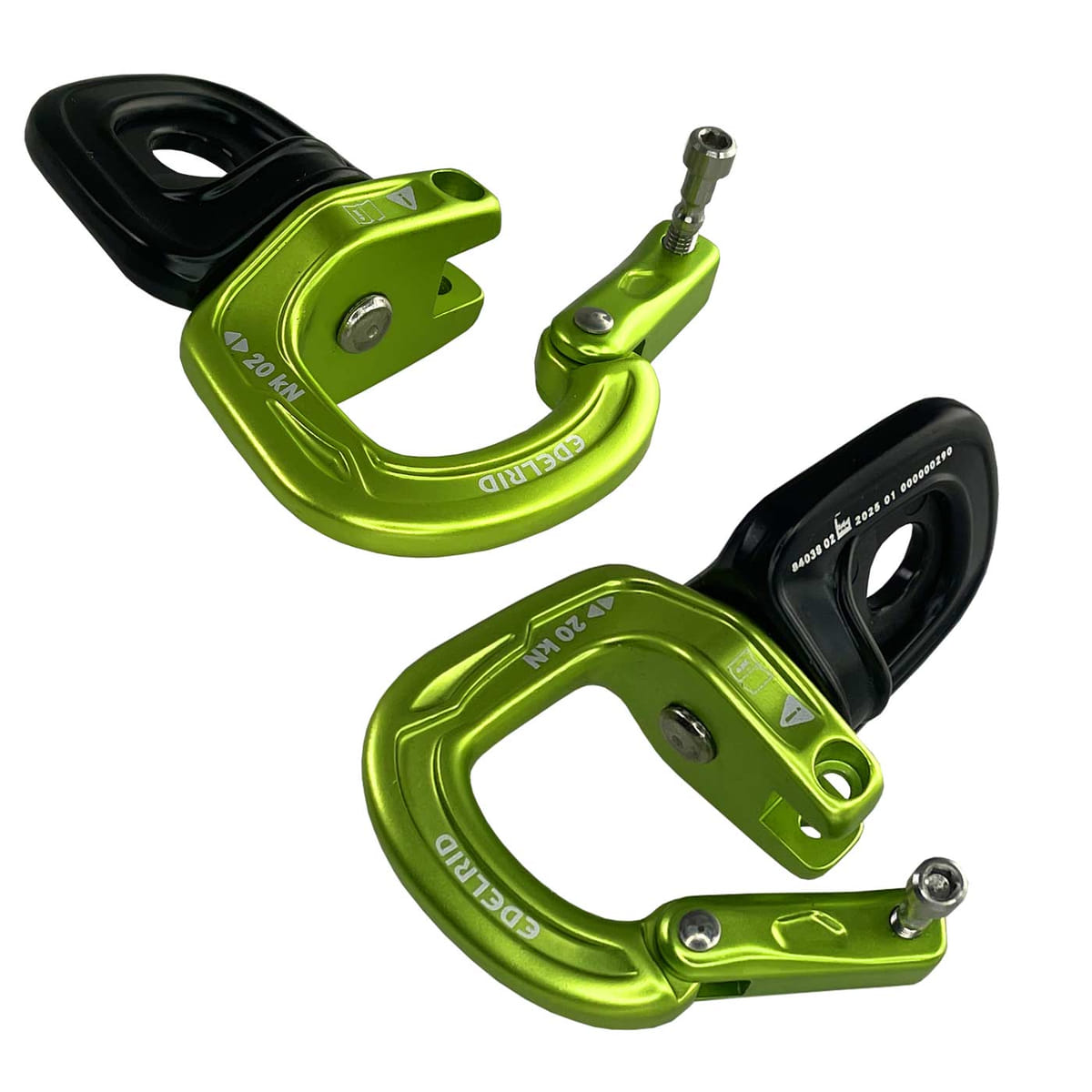

The Cupid Swivel Mix consists of a closed and an openable eye, connected by a ball-bearing swivel. The built-in anti-twist feature in the closed eye keeps the attached carabiner in place and reduces the risk of cross-loading. The screw lock of the openable eye allows repeated opening and closing without the need to replace screws or secure them manually, and it also prevents the screw from loosening due to vibrations. The opening width of 12 mm combined with the outward opening direction makes the installation of rope end connections, slings, and metal components easy.
Technical Data:
• ball-bearing swivel
• Size: 95 x 50 x 28 mm
• Diameter: internal 25 mm
• Opening width: 12 mm
Technical Data:
• ball-bearing swivel
• Size: 95 x 50 x 28 mm
• Diameter: internal 25 mm
• Opening width: 12 mm
More Information
| Shape | Others |
|---|---|
| Breaking strength closed [kN] | 20.00 |
| Breaking strength traversal [kN] | 10.00 |
| Breaking strength open [kN] | 0.00 |
| length [mm] | 90.00 |
| width [mm] | 50.00 |
| gate opening [mm] | 13.00 |
| weight [g] | 97.00 |
| Colour | black/green |
| Item number | PCSM |
| Material | Aluminium |
| Norm | CE, PPE-R/11.135 |
| PPE | Yes |
| Safety Regulations | EDELRID GmbH & Co. KG |
