Cupid
As low as
29,99 €
Incl. tax, excl. shipping costs
Connection ring | Alu | 20 kN | 65 g | EN 362
SKU
RAC
In stock
Product Details
Description

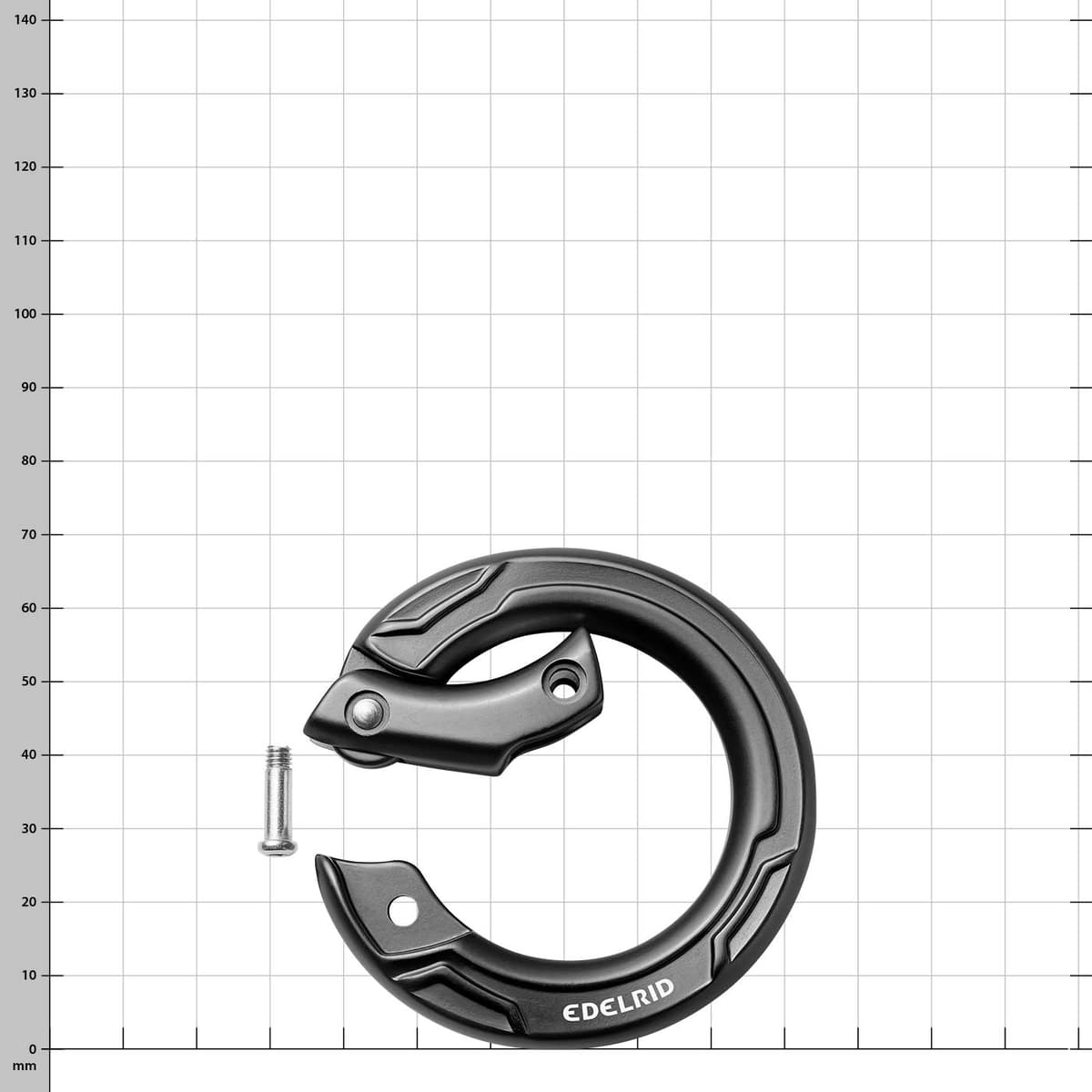

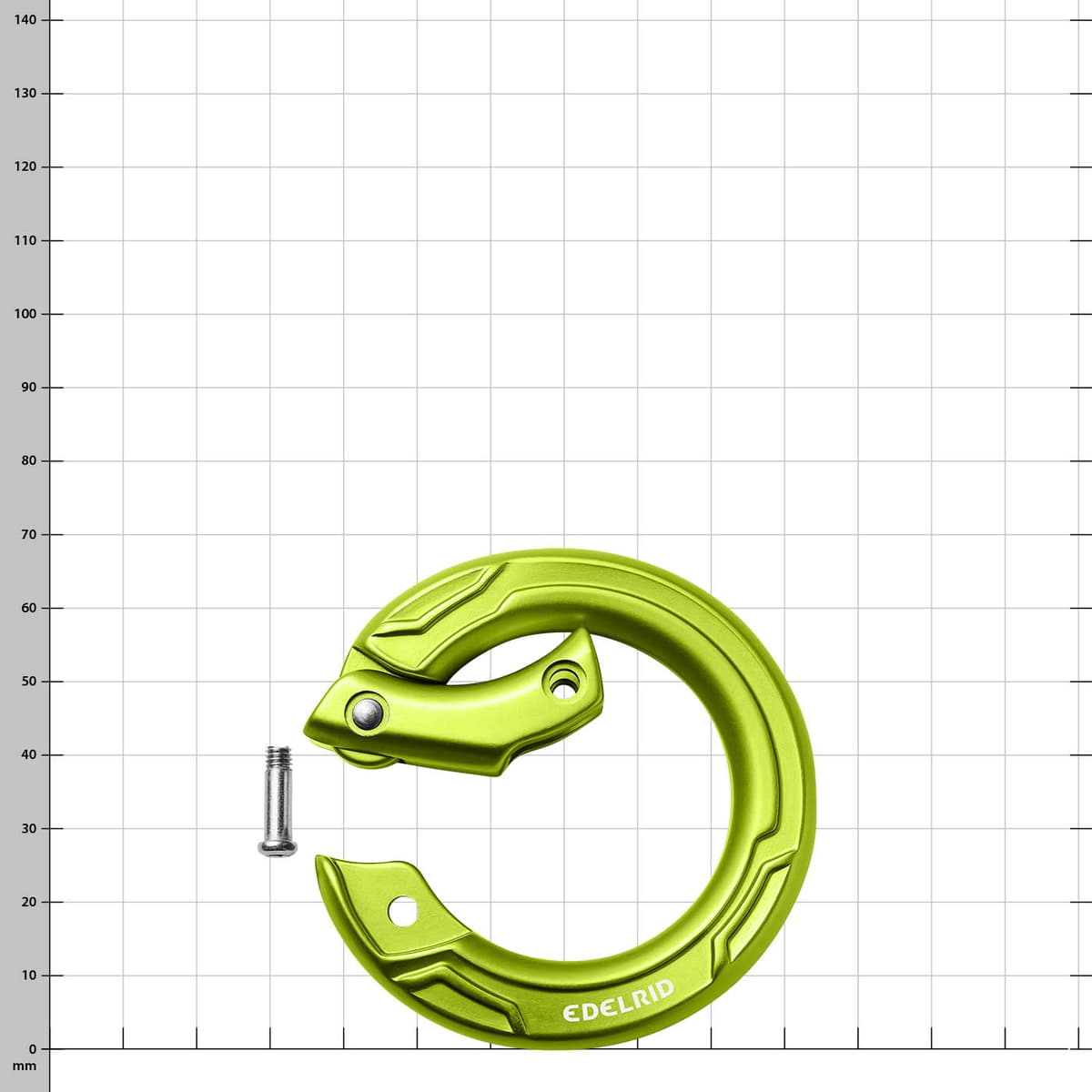

Openable ring according to EN 362-M for a permanent and direction-independent connection of load-bearing equipment elements. The design of the Cupid makes do with one screw and no other individual parts. The screw is never loaded along its axis. Even if it's lost, the loaded ring remains closed. With an opening width of 12 mm, the installation of rope end connections, slings and metal components is possible.
Technical Data:
- Diameter: inside 44 mm
- Opening width: 12 mm
Technical Data:
- Diameter: inside 44 mm
- Opening width: 12 mm
More Information
| Breaking strength closed [kN] | 20.00 |
|---|---|
| Breaking strength open [kN] | 0.00 |
| Breaking strength traversal [kN] | 20.00 |
| Keylock | Yes |
| Shape | Round |
| gate opening [mm] | 12.00 |
| length [mm] | 70.00 |
| Material | Aluminium |
| Norm | EN 362 |
| PPE | Yes |
| weight [g] | 65.00 |
| width [mm] | 68.00 |
| Safety Regulations | EDELRID GmbH & Co. KG |
