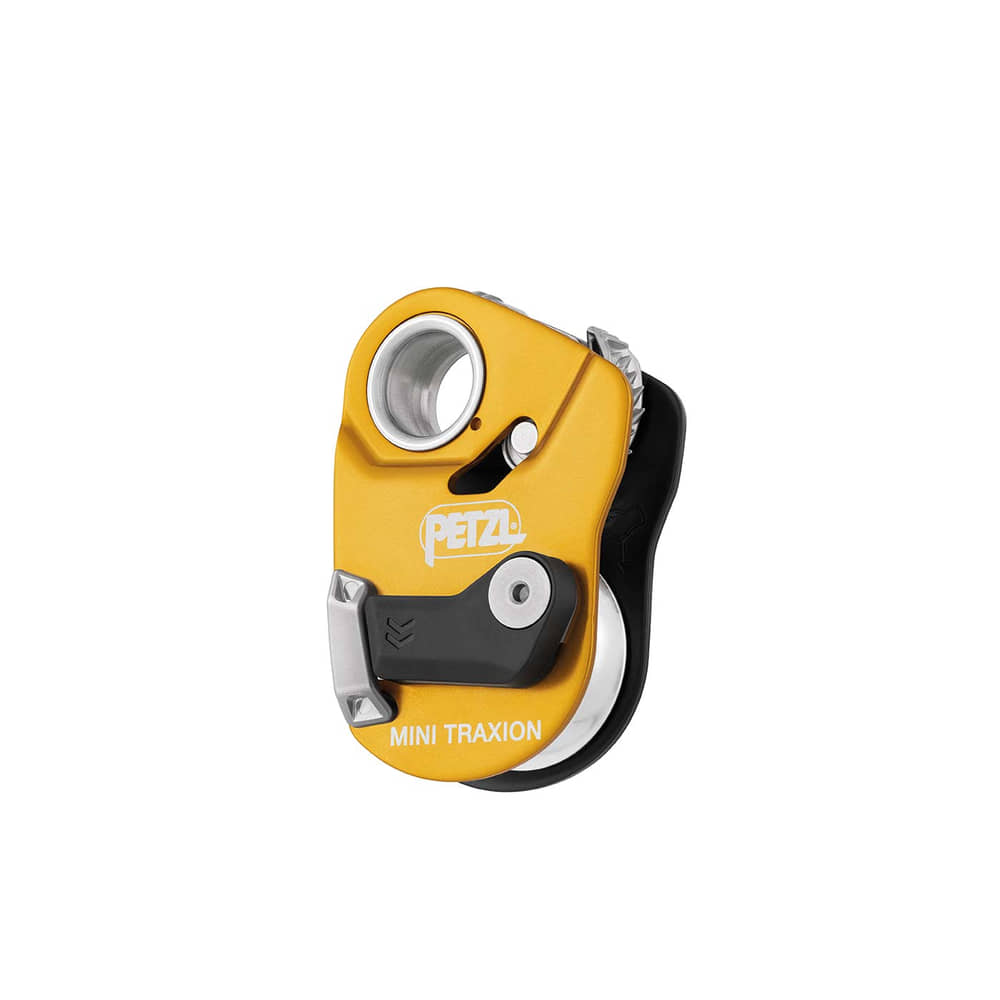

Mini Traxion
113,05 €
Incl. tax, excl. shipping costs
Progress capture pulley | 20 kN | for ropes Ø 7–11 mm | EN 567 | EN 12278 | EN 12841-B
SKU
MT54
In stock
ONLY 4 LEFT!
It can happen that another interested party has gone through the ordering process faster and the display of the remaining stock still changes on your way through the checkout.
Product Details
Description

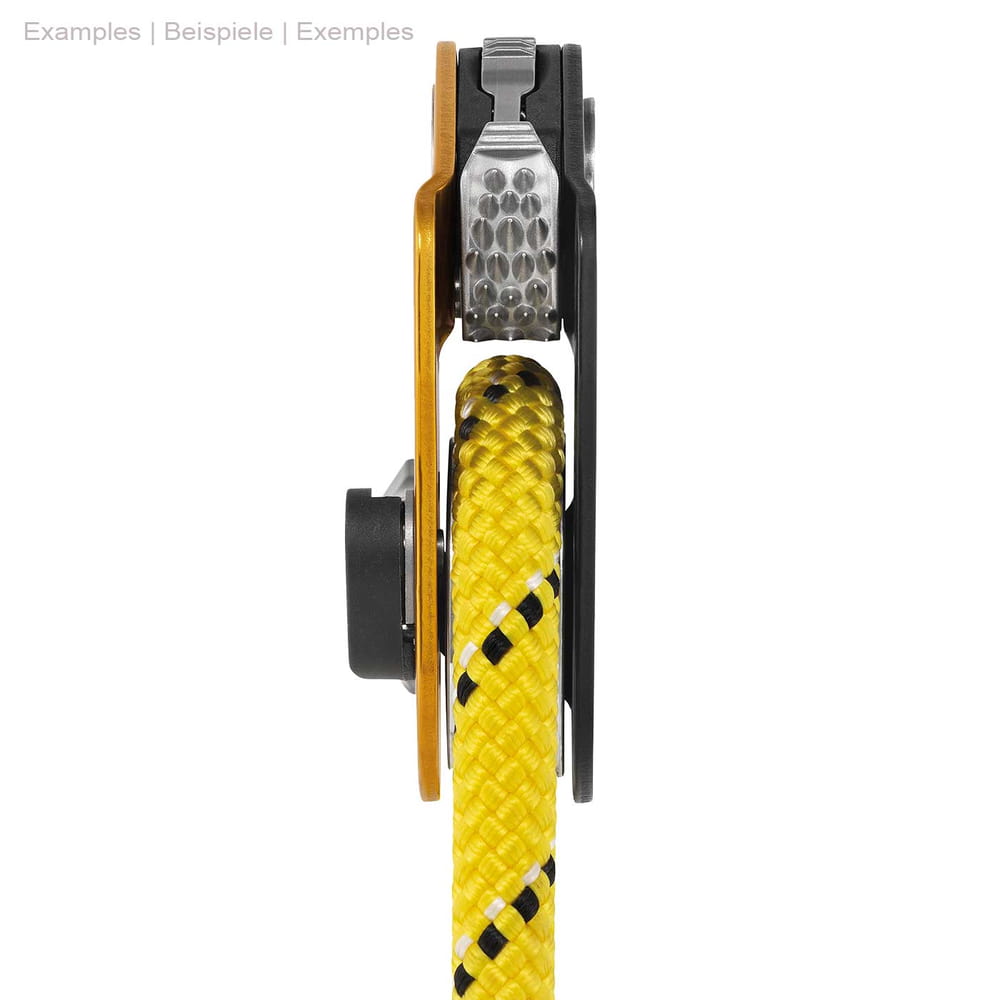

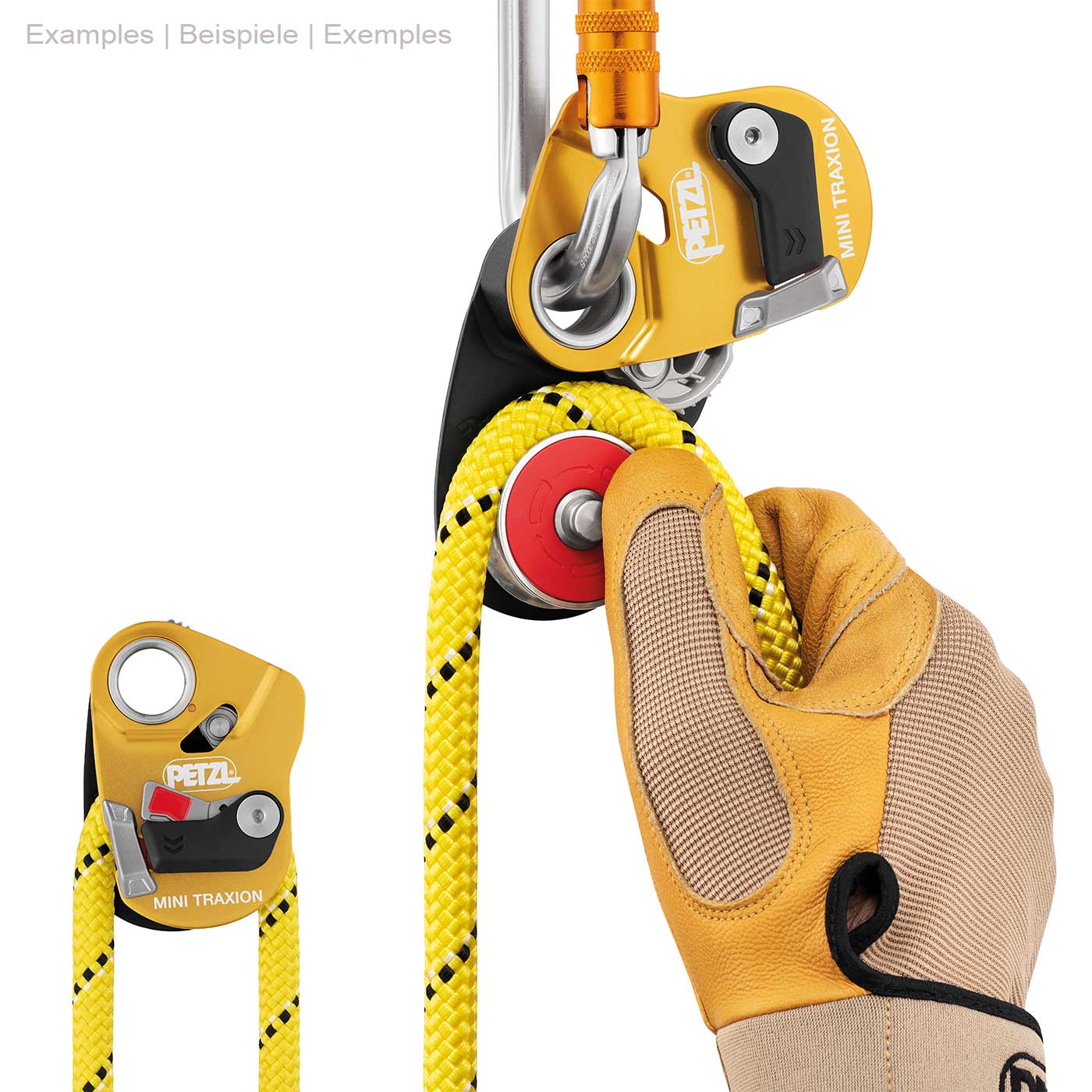

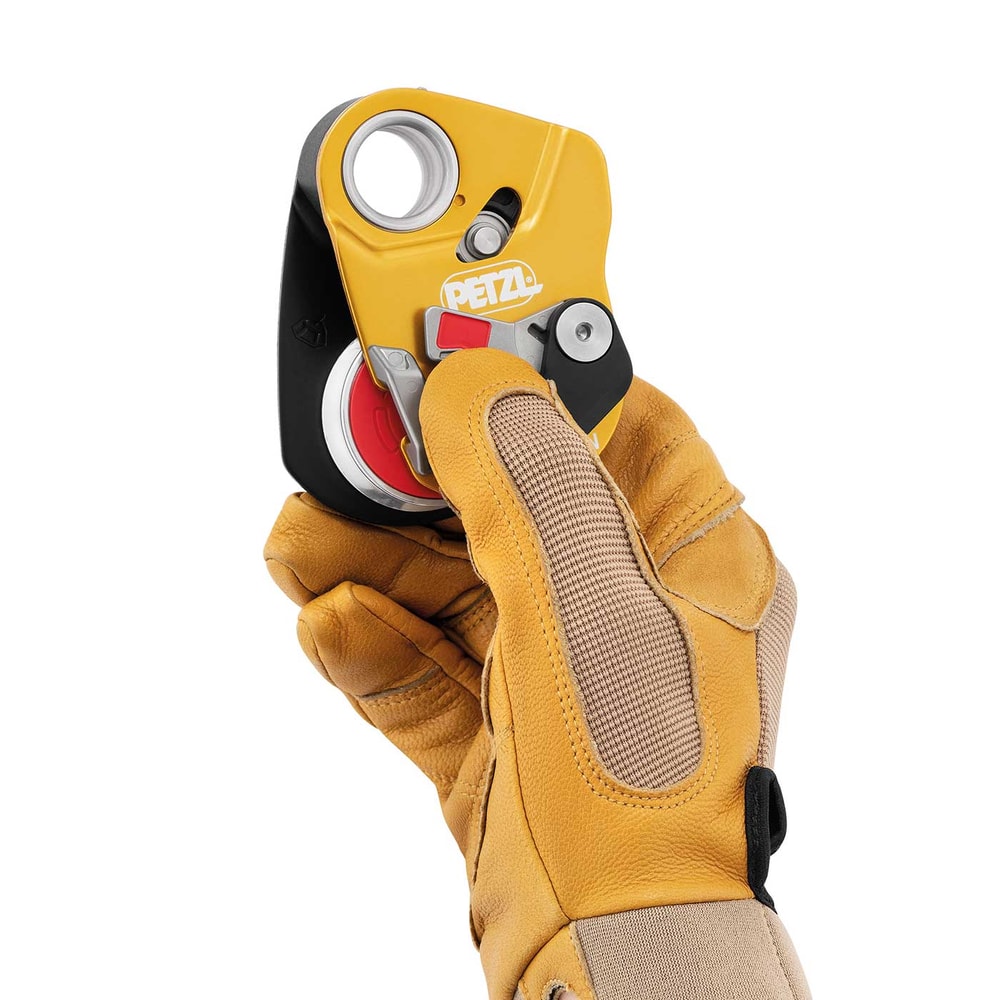

The compactly designed pulley can be opened even when it is attached to the anchor point and is designed for setting up pulley systems. Thanks to the high efficiency of the pulley, it is well suited for lifting moderate loads. Well suited for technical rescue operations and rope assisted work. A red indicator is visible as long as the movable side part is not locked. By locking the clamping mechanism in the open position, the Mini Traxion can also be used as a loose pulley.
Technical data:
• Weight: 150 g
• Material: Aluminum, stainless steel, polyamide
• for ropes Ø 7–11 mm
• Rope sheave: Ø 32 mm, encapsulated ball bearing
• Breaking strength: 20 kN

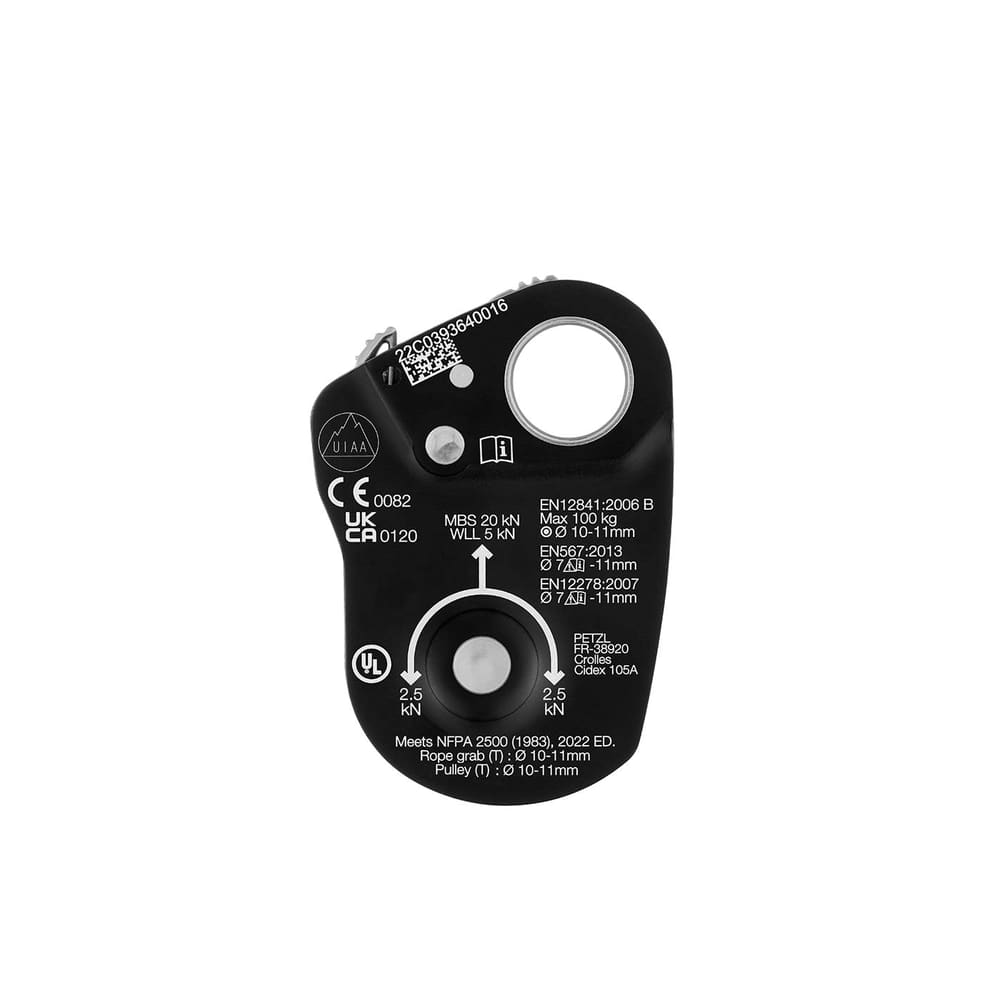

• Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
Technical data:
• Weight: 150 g
• Material: Aluminum, stainless steel, polyamide
• for ropes Ø 7–11 mm
• Rope sheave: Ø 32 mm, encapsulated ball bearing
• Breaking strength: 20 kN
• Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
More Information
| Breaking strength [kN] | 20.00 |
|---|---|
| Colour | yellow/black |
| Item number | MT54 |
| Material | Aluminium |
| Norm | EN 12278, EN 12841-B, EN 567 |
| Pulley | Single roll |
| self jamming | Yes |
| Work load limit [kN] | 5.00 |
