Revolver Rig
132,92 €
Incl. tax, excl. shipping costs
Carabiner with pulley | Aluminium | 25 kN | for ropes up to Ø 13 mm | 3-way locking | EN 362 | EN 12278
SKU
JB841
In stock
ONLY 1 LEFT!
It can happen that another interested party has gone through the ordering process faster and the display of the remaining stock still changes on your way through the checkout.
Accessories / spare parts
Product Details
Description

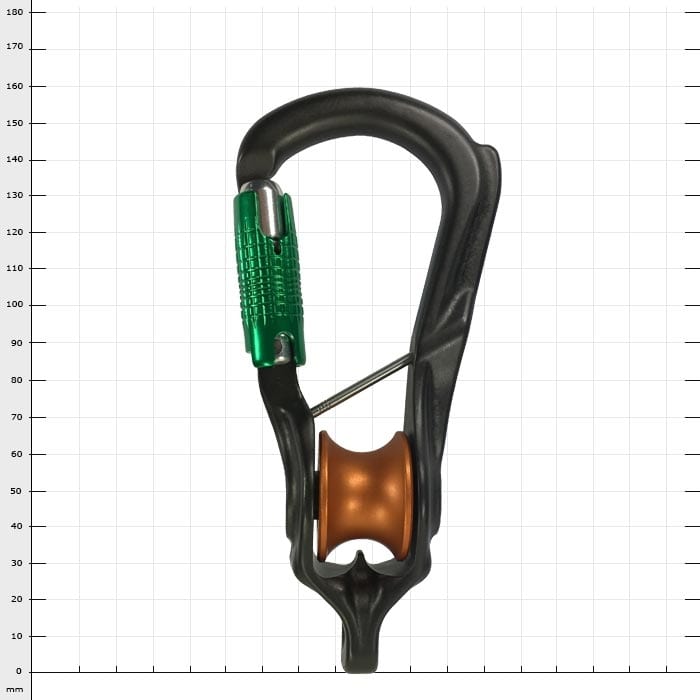

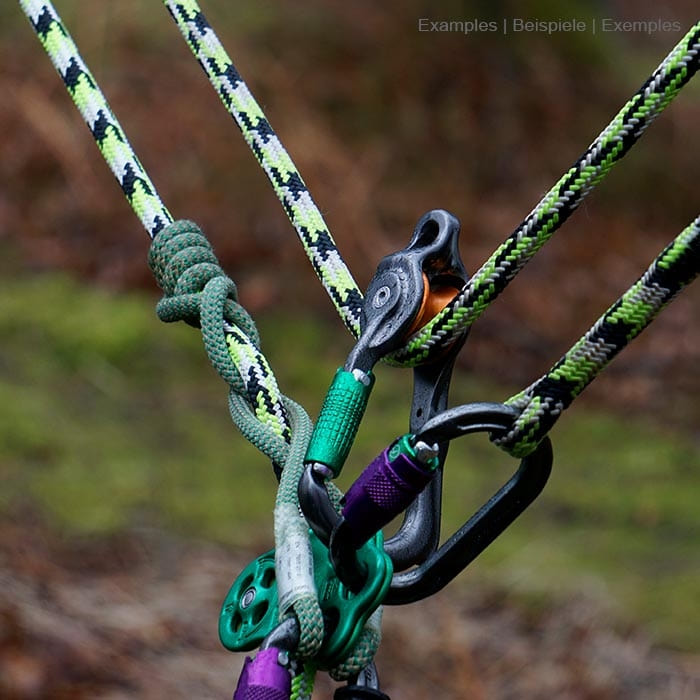

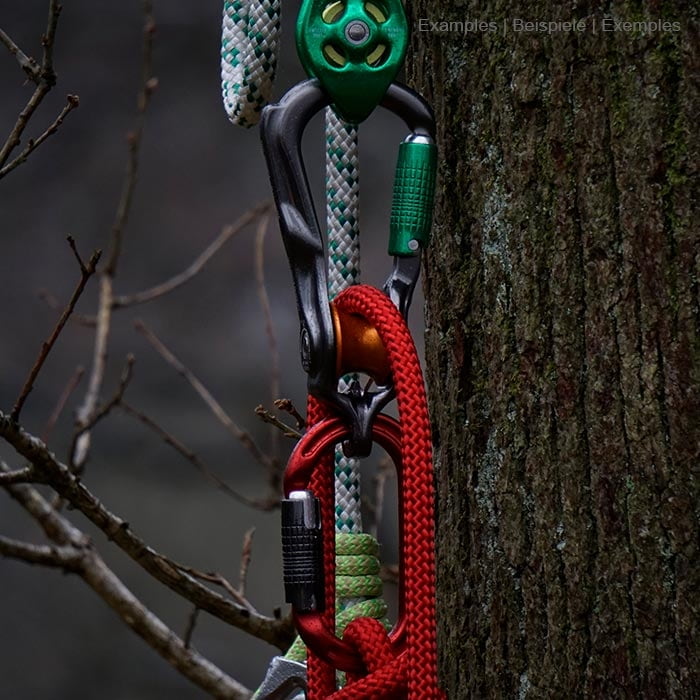

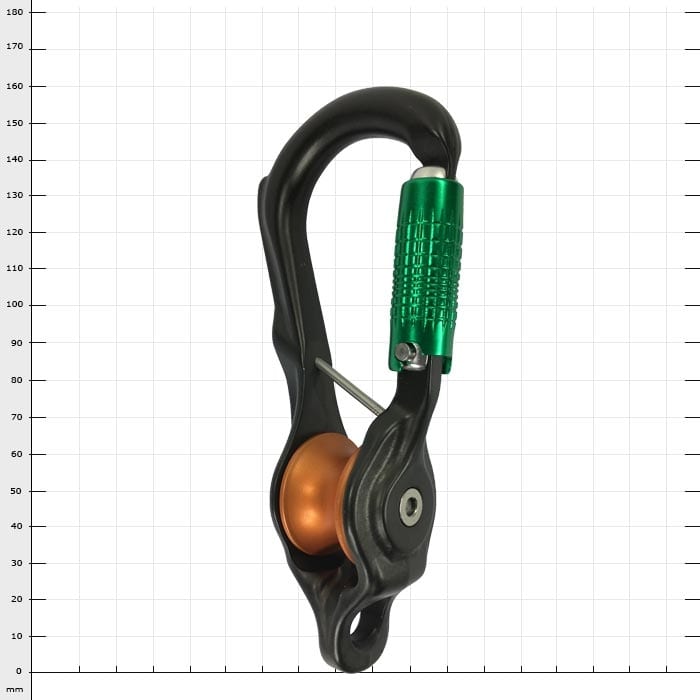

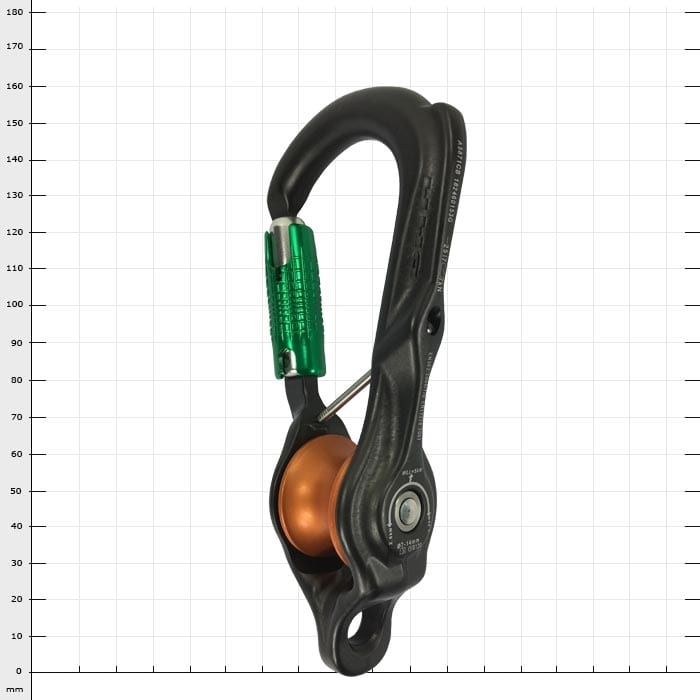

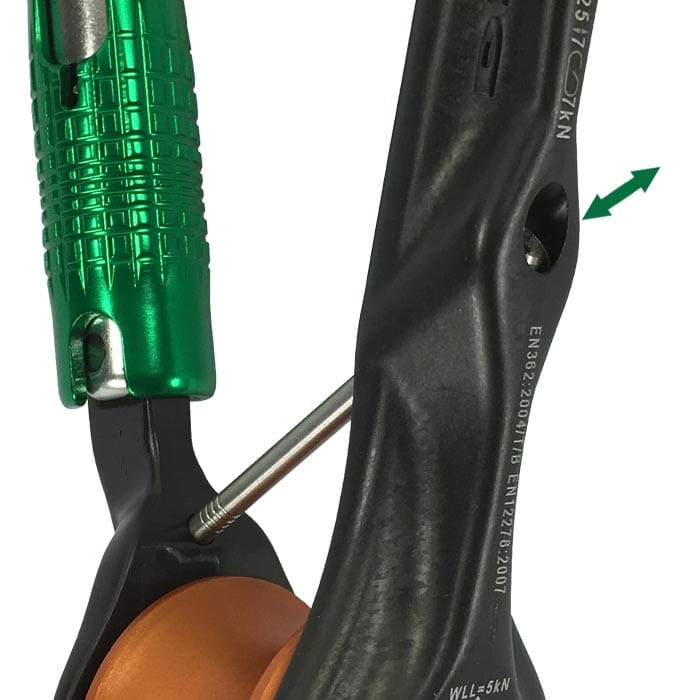

Carabiner with integrated pulley. Thanks to its design, friction between the rope and the attached connector is minimised. It can be used for various applications – such as in a V-Rig climbing system, a pulley block, or as a redirect. The captive bar (pin above the pulley) can be easily unscrewed with a screwdriver. The Revolver Rig is suitable for ropes with a diameter of 7 to 13 mm. Featuring an efficient ball bearing and a rope-friendly eyelet.
Technical data:
• Keylock: Yes
• Major axis closed strength: 25 kN
• Minor axis strength: 7 kN
• Major axis open strength: 7 kN

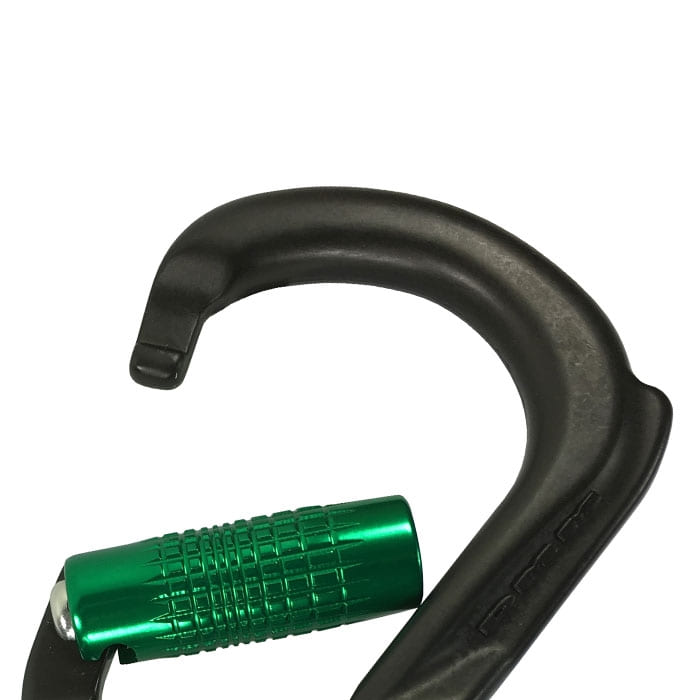

• Gate opening: 21 mm
• Weight: 203 g
• Length: 160 mm
• Width: 76 mm
Technical data:
• Keylock: Yes
• Major axis closed strength: 25 kN
• Minor axis strength: 7 kN
• Major axis open strength: 7 kN
• Gate opening: 21 mm
• Weight: 203 g
• Length: 160 mm
• Width: 76 mm
More Information
| Locking | 3-Action |
|---|---|
| Shape | Others |
| Keylock | Yes |
| Breaking strength closed [kN] | 25.00 |
| Breaking strength traversal [kN] | 7.00 |
| Breaking strength open [kN] | 7.00 |
| length [mm] | 160.00 |
| width [mm] | 76.00 |
| gate opening [mm] | 21.00 |
| weight [g] | 203.00 |
| Colour | grey |
| Item number | JB841 |
| Material | Aluminium |
| Norm | EN 12278, EN 362 |
| PPE | Yes |
| Safety Regulations | DMM Europe B.V. |
