- Top Seller
SnakeAnchor
As low as
117,81 €
Incl. tax, excl. shipping costs
Lifting accessory | impact absorber | EN 795 B
SKU
VSA
In stock
Product Details
Description
Multifunctional anchoring device with TunnelRing. 16 mm large, made with parallely sewn polyester rope, with segment seams, which allow a gradual length adjustment and can be used as shock absorber when a force of 5 kN or higher is applied.
SnakeAnchor features:
• utility model
• mobile anchor and connecting device with stepwise adjustable length
• certified according to EN 795 B

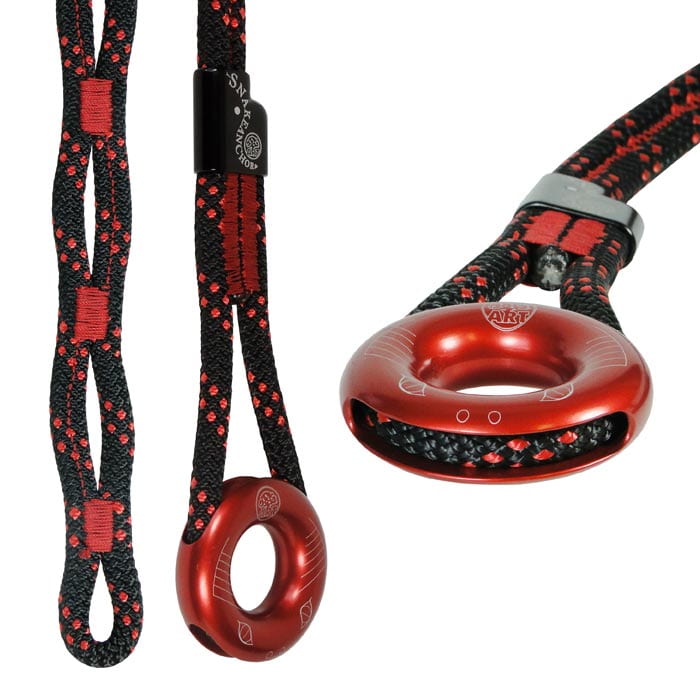

• TunnelRings are made of aluminium machined in the solid

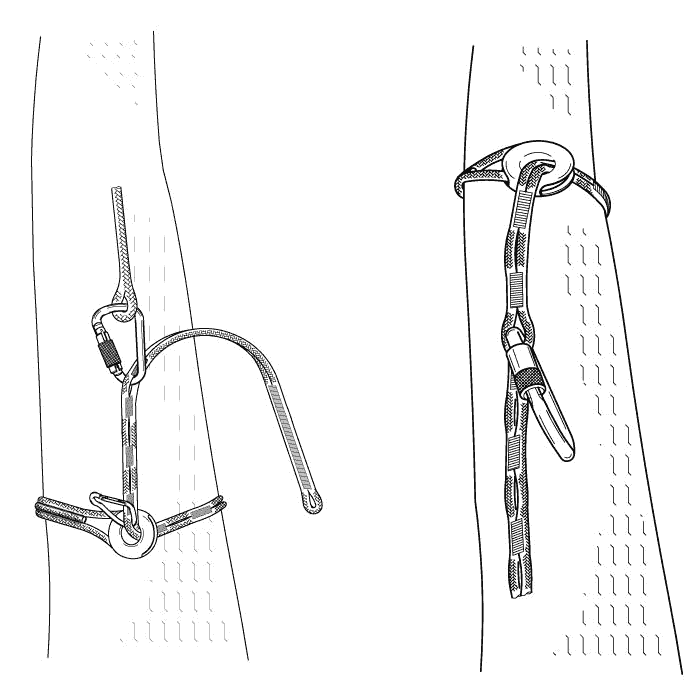

• to be used as anchor above or below load
• length adjustable (in about 7 cm intervals with the 2,5 m version and about 9 cm intervals with the 5 m version)
• securing the position in choking mode with non-locking carabiners
• can be used as an adjustable friction saver with carabiners or pulleys
• great abrasion resistance with wide contact surface thanks to parallel sewn 8 mm double strand polyester rope
• high loading capacity and protection of the spliced eye owed to the ART TubeRing principle
• enhanced safety and tensile load based on load evenly distributed to the whole of the TubeRing
• static load capacity of segment seams up to 4 kN (working load) and segment seams’ shock absorbing qualities from 5 kN
• service life: 5 years
• tested with: 18 kN/3 min.
• breaking load: 20 kN
• weight: 250 cm approx. 350 g, 500 cm approx. 660 g
SnakeAnchor features:
• utility model
• mobile anchor and connecting device with stepwise adjustable length
• certified according to EN 795 B
• TunnelRings are made of aluminium machined in the solid
• to be used as anchor above or below load
• length adjustable (in about 7 cm intervals with the 2,5 m version and about 9 cm intervals with the 5 m version)
• securing the position in choking mode with non-locking carabiners
• can be used as an adjustable friction saver with carabiners or pulleys
• great abrasion resistance with wide contact surface thanks to parallel sewn 8 mm double strand polyester rope
• high loading capacity and protection of the spliced eye owed to the ART TubeRing principle
• enhanced safety and tensile load based on load evenly distributed to the whole of the TubeRing
• static load capacity of segment seams up to 4 kN (working load) and segment seams’ shock absorbing qualities from 5 kN
• service life: 5 years
• tested with: 18 kN/3 min.
• breaking load: 20 kN
• weight: 250 cm approx. 350 g, 500 cm approx. 660 g
More Information
| adjustable | Yes |
|---|---|
| Norm | EN 795-B |
| PPE | Yes |
